Introduction

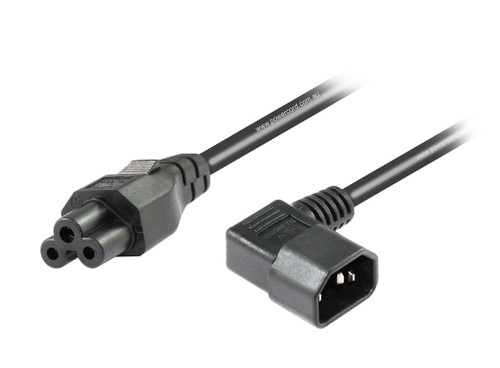

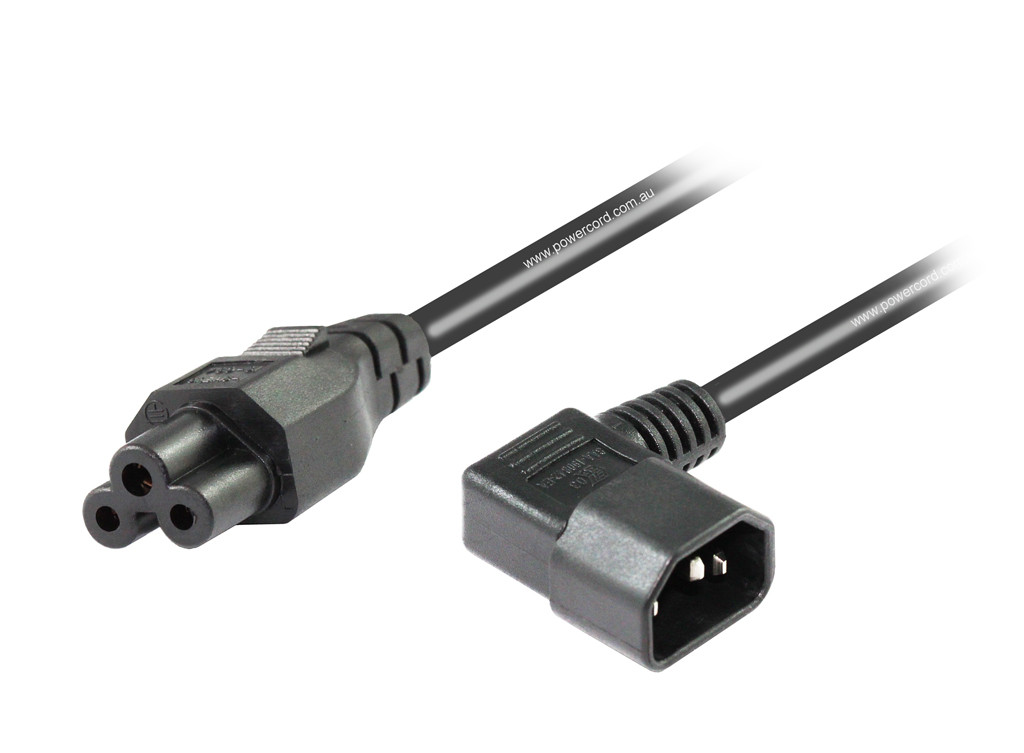

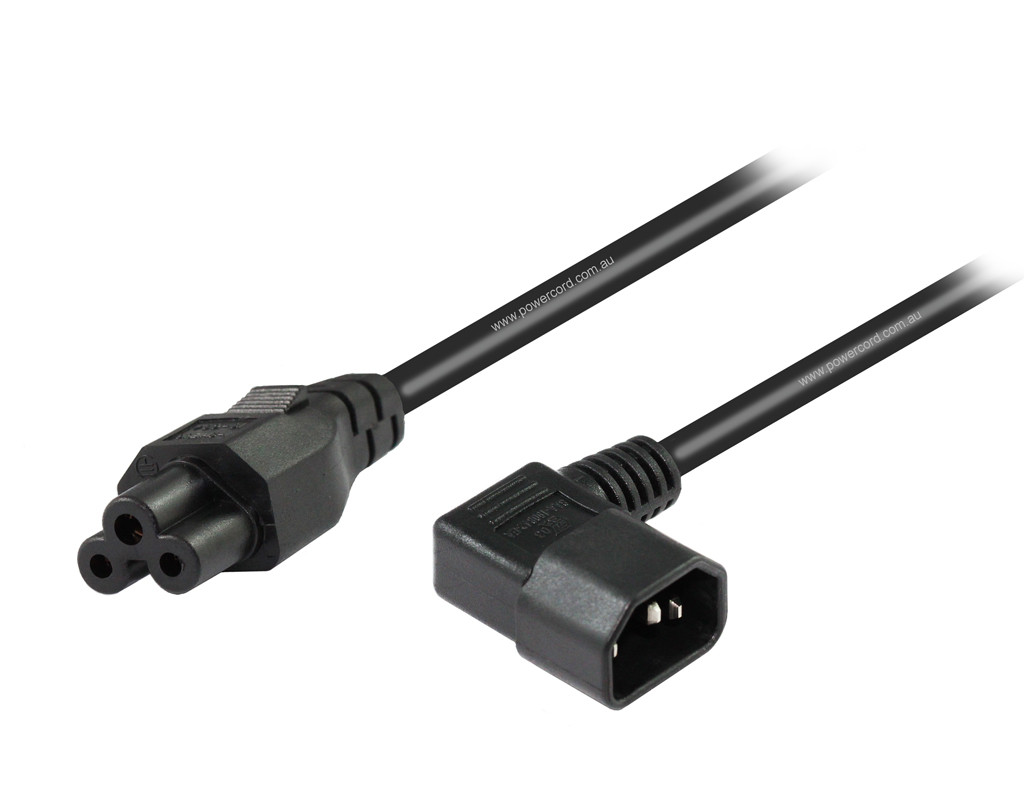

This power cable assembles an IEC C5 (cloverleaf/mickey-mouse) connector to a left-angle IEC C14 equipment inlet. It’s designed as a compact, flexible interconnect for power supplies and small appliances that require a C5 mating plug on one end and an IEC C14 inlet on the other — ideal for space-constrained installations where a right-angle/left-angle exit prevents cable strain and keeps the routing neat. The cable uses three stranded copper conductors sized 3G × 0.75 mm², giving a good balance of flexibility and current capability for typical office and IT equipment.

Key features

• Length: 1.0 m
• Connectors: IEC C5 (female) → Left-angle IEC C14 (male inlet style)
• Conductors: 3 × 0.75 mm² stranded copper (harmonized/earth + live + neutral)
• Flexible PVC insulation and jacket for ease of routing
• Low-profile left-angle C14 to reduce rear clearance and strain on connector
• Suitable for computers, monitors, external PSUs and similar equipment (check device ratings)
• Compliant with IEC 60320 connector family geometry

Electrical specifications

• Rated voltage: 250 V AC (max)
• Rated current: 2.5 A
• DC conductor resistance: ≤ 0.023 Ω per conductor (approx. 0.023 Ω/m for 0.75 mm² copper)
• Insulation withstand voltage (typical): ≥ 1.5 kV AC for 1 min (verify with test cert if required)
• Power capability (approx): suitable up to ~2.3 kW at 230 V AC under normal conditions (confirm for continuous or high-inrush loads)

Mechanical & materials

• Conductor material: fine-stranded copper for flexibility
• Conductor size: 0.75 mm² (3 cores: L, N, PE)
• Insulation: PVC (rated for use temperatures below)
• Outer jacket: H05VV-F PVC, round profile, smooth finish
• Connector shells: moulded thermoplastic with integrated strain relief
• Left-angle C14 orientation: 90° exit — cord exits to the left when connector face is toward you (specify left vs right if needed)

Environmental & temperature ratings

• Operating temperature: -10 °C to +70 °C (typical for PVC jacketed cords)
• Storage temperature: -20 °C to +80 °C

Standards & compliance

• Connector geometry: IEC 60320 family compatibility
• RoHS / REACH compliant (subject to supplier declaration; request certificates if needed)
• With SAA Safety Certificates for C5, C14 and the power cord

Dimensions & tolerances (typical)

• Cable length: 1.0 m ± 20 mm (custom tolerances available)
• Conductor cross-section: 0.75 mm²
• Approx. overall cable diameter: ~5.5mm (depends on strand count and jacket thickness)
• Left-angle connector overall depth and plug face dimensions follow IEC 60320 C14 outline
