Introduction

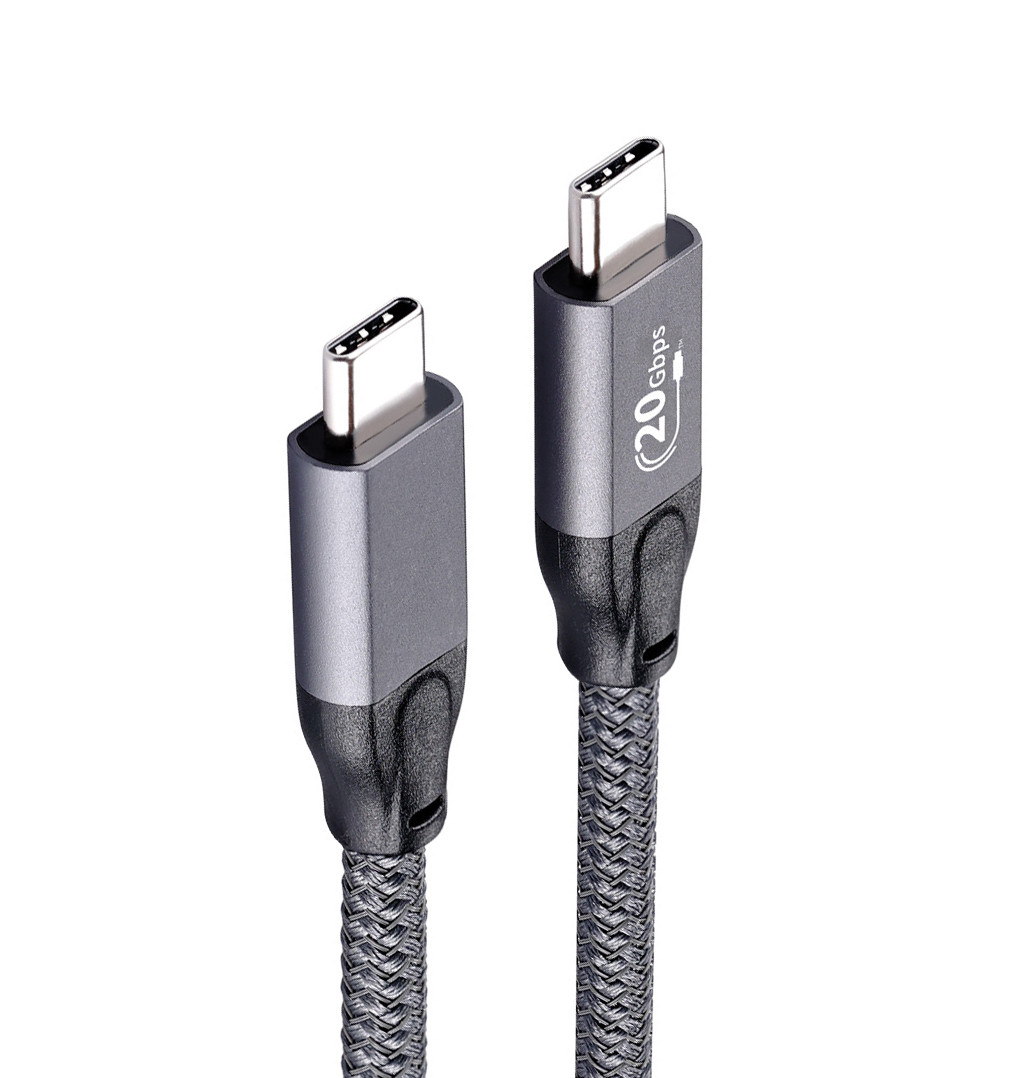

This high-performance USB-C cable engineered for modern laptops, docks and displays. This cable delivers reliable 20 Gbps data throughput, up to 100 W power delivery for fast charging, and 4K@60 Hz video using USB-C DisplayPort Alt Mode — all in a flexible, shielded cable designed for everyday use. It’s ideal for power-hungry laptops, external displays, high-speed storage, and docking setups where one clean USB-C connection must handle power, video and data.

Key features

• Data: 20 Gbps high-speed data link (USB 3.2 class performance as requested).
• Power: Supports USB Power Delivery up to 100 W (20 V × 5 A) — requires an e-marker cable or in-cable electronics as per PD >3 A requirements.
• Video: Supports 4K@60 Hz video via USB-C DisplayPort Alt Mode (requires host and display that support Alt Mode).
• Backwards compatible with USB 3.2 Gen2/Gen1 and USB 2.0 hosts/devices.
• Robust shielding (foil + braided) and strain relief for long service life.
• Available lengths: typical SKUs 0.5 m, 1 m, 1.5M, and 3M .
• Reversible USB-C connectors both ends (C ↔ C).

Technical specifications

• Cable type: USB-C to USB-C (both ends)
• USB standard: USB 3.2 Gen2x2 family (product configured to support 20 Gbps data)
• Max data throughput: 20 Gbps (host/device and OS dependent)
• Video: Supports DisplayPort Alt Mode — up to 4K @ 60 Hz (depends on DP Alt Mode version supported by host/display)
• Power Delivery: Up to 100 W (20 V / 5 A) — cable contains required e-marker for >3 A operation
• Conductors / shielding: Multi-pair signal cores with foil + braided shield for EMI protection; reinforced power conductors for PD delivery
• Connector shell: Alloy metal shell with molded strain relief
• Temperature rating: Typical operating −20 °C to +60 °C
• Bend radius: Designed for >10,000 flex cycles (typical; depends on length)
• Compliance & safety: Designed to meet USB-IF guidelines and PD e-marker requirements (USB-IF certification dependent on third-party testing)
• Typical uses: Laptop charging, external monitor connection (via DP Alt Mode), external NVMe/SSD enclosures, docking stations, high-speed data transfer
